VentureClad™ Jacketing Tapes
The performance you need. Wherever you need it
3M™ VentureClad™ Insulation Jacketing System is a zero permeability, self-adhesive jacket that delivers significant advantages over competitive cladding and traditional jacketing techniques.
Designed with Mechanical Engineers, Architects and Contractors in mind, this insulation weatherproofing system exceeds most building code requirements and installs quickly and easily on insulated pipe or duct with no special tools.
Long-term reliability and fast, simple application all rolled into one high-performing insulation jacketing system. That’s 3M innovation at work.

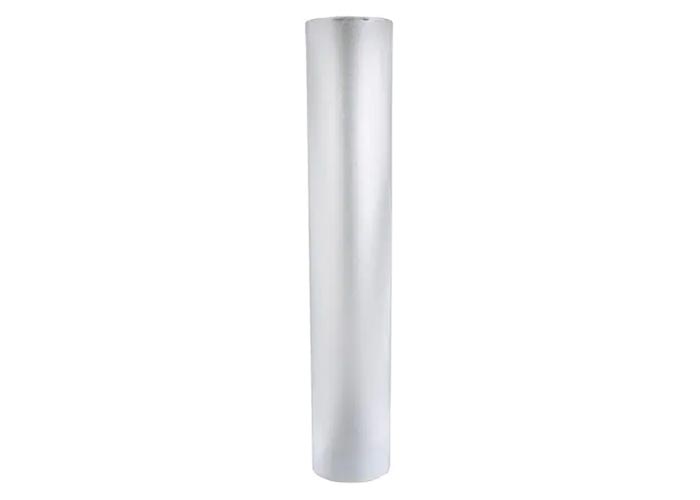

VentureClad™ Insulation Jacketing Tape 1577CW-E
3M™ VentureClad™ Insulation Jacketing Tape 1577CW-E is an all-weather option for various jacketing applications. It offers superior resistance to weathering, mold, UV and extreme environmental conditions. This silver aluminum multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier for insulation cladding and jacketing applications.
Product Advantages
- Zero permeability provides an absolute vapor barrier for sealing applications
- Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
- High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
- Flexible backing conforms to irregular and curved surfaces
- Easy to cut and install on-site without special tools or application methods
Applications
- Vapor barrier for insulation cladding and jacketing operations such as HVAC ductwork and piping
- Interior and exterior ductwork (rectangular/round), pipes (straight runs, bends, intersections), and vessels
- Weather protection system in extreme environmental conditions
- Cladding option for 3M™ Interam™ Endothermic Mat E-5A-4
Resources

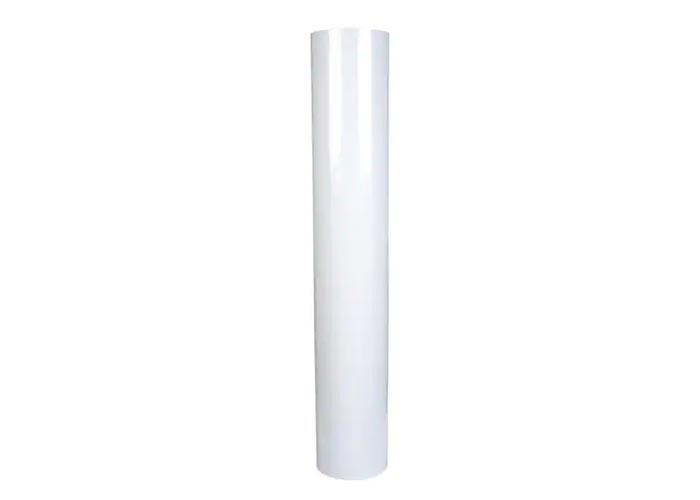

VentureClad™ Insulation Jacketing Tape 1577CW-WM
3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM is an all-weather option for various jacketing applications. It offers superior resistance to weathering, mold, UV and extreme environmental conditions and meets the FDA compositional requirements for indirect food contact. This white aluminum multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier.
Product Advantages
- Zero permeability provides an absolute vapor barrier for sealing applications
- Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
- High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
- Qualifies for compliance credit for LEED®
- Flexible backing conforms to irregular and curved surfaces
- Easy to cut and install on-site without special tools or application methods
Applications
- Vapor barrier for insulation cladding and jacketing operations such as HVAC ductwork and piping
- Interior and exterior ductwork (rectangular/round), pipes (straight runs, bends, intersections), and vessels
- Weather protection system in extreme environmental conditions
Resources

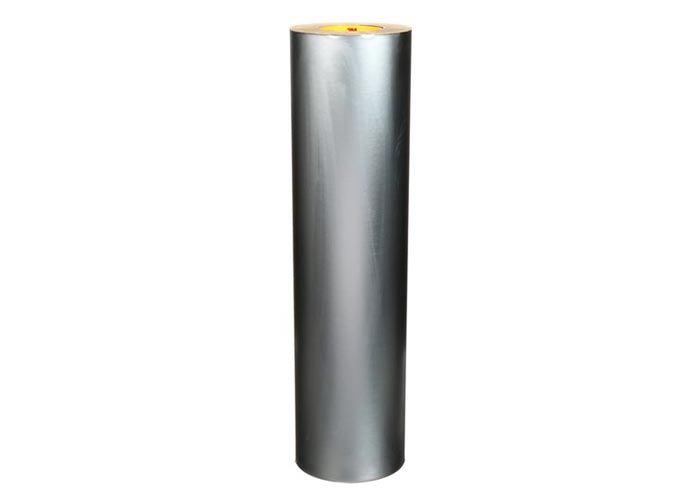

VentureClad™ Heavy Duty Insulation Jacketing Tape 1579GCW
3M™ VentureClad™ Heavy Duty Insulation Jacketing Tape 1579GCW is a 15.0 mil heavy duty multi-layered laminate coated with an aggressive cold weather pressure sensitive acrylic adhesive. It is excellent as a vapor barrier for insulation cladding and jacketing applications requiring reinforced protection. It is designed specifically to protect insulation, allowing the system to perform at its best.
Product Advantages
- Heavy duty laminate bonds and seals in a broad range of temperatures, including extreme cold
- Scrim provides reinforcement for high puncture and tear resistance to ensure long life and durability
- Aggressive acrylic adhesive offers instant adhesion in temperatures as low as -10°F (-23°C)
- Zero permeability vapor barrier for insulation cladding and jacketing applications
- Easy to cut and install on site without special tools or application methods
- 15.0 mil tape conforms to a variety of irregular surfaces
Applications
- Vapor barrier for heavy duty insulation cladding and jacketing
Resources
